Rope Clamps

✧✧

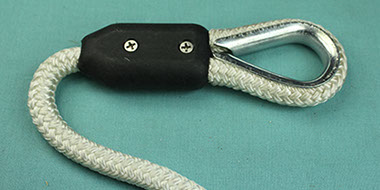

Rope Clamp | Maple Leaf Ropes
Rope Clamps Description Breaking Strength Lbs* Color MLR Part # List Price Rope Clamp 3/16" 500-600 White EZRC019W $ 4.26 Rope Clamp 3/16" 500-600 Black EZRC019B $ 4.26 Rope Clamp 1/4" 750-850 White EZRC025W $ 5.34 Rope Clamp 1/4" 750-850 Black EZRC025B $ 5.34 Rope Clamp 3/8" 1000-1200 White EZRC038W $ 6.66 Rope Clamp 3/8" 1000-1200 Black EZRC038B $ 6.66 Rope Clamp 1/2" 1500-1700 White EZRC050W $ 7.98 Rope Clamp 1/2" 1500-1700 Black EZRC050B $ 7.98 Rope Clamp 5/8" 2000-2300 White EZRC063W $ 9.30 Rope Clamp 5/8" 2000-2300 Black EZRC063B $ 9.30 Rope Clamp 3/4" 3000 White EZRC075W $ 11.94 Rope Clamp 3/4" 3000 Black EZRC075B $ 11.94 Rope Clamps (Double OT) Description Breaking Strength Lbs* Color MLR Part # List Price Double OT Clamp 3/8" 1200 Black EZDC038B $ 6.66 Double OT Clamp 3/8" 1000 Red EZDC038R $ 6.66 Double OT Clamp 1/2" 1700 Black EZDC050B $ 7.98 Double OT Clamp 1/2" 1500 Red EZDC050R $ 7.98 Double OT Clamp 5/8" 2300 Black EZDC063B $ 9.30 Double OT Clamp 5/8" 2000 Red EZDC063R $ 9.30 Double OT Clamp 3/4" 3000 Black EZDC075B $ 11.94 Double OT Clamp 3/4" 2800 Red EZDC075R $ 11.94

Rope Clamp

Reusable Rope Clamps

Brass threaded inserts are molded in one half of the clamp and stainless steel screws are used to tighten the halves together. Suggested uses include pet leashes, horse leads, dock and fender lines, and much, much more.

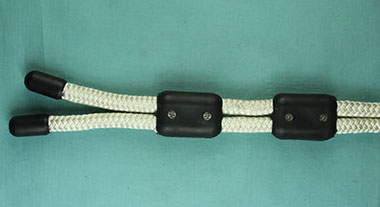

Double OT Rope Clamp | Maple Leaf Ropes

Double OT Clamp

Double OT Clamp

A double OT clamp is for attaching two (2) separate ropes together.  Also used in conjunction with another double OT or rope clamp for added strength.

Rope Clamps are available in white, and black (Double OT is only available in black). Black is the strongest. We have designed the rope clamps for solid braided nylon rope even though they work great on many different types. Some ropes (as Manila rope) it may be necessary to go to a larger size clamp for the clamps to fit properly and work correctly due to the density of that particular rope. For instance, for a 1/2" Manila rope you may have to go to a 5/8" rope clamp.



If the rope is very stiff or very dense, you will probably have to go to a larger size clamp.



For optimum strength, use the following guideline of distance between Double OT & Rope clamps:

Clamp Size -Distance

3/8"- 4 to 6 inches

7/16"-1/2" -6 to 8 inches

5/8" -8 to 10 inches

3/ 4" -10 to 12 inches

✧✧

Ready to order? Have a question? Can't find what you're looking for? Call us at 1 888 285 4275
