Rope Properties

New England STS-HSR

✧✧

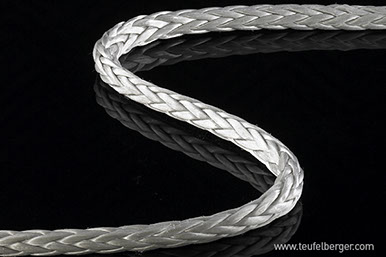

12 Strand Synthetic Fiber Construction

HSR (12 Strand Heat Treated Dyneema) Size Colour Weight Lbs Breaking Strength Lbs* Part Number 1/8" x 660' Silver 3.96 5200 1628-03-00660 3/16" x 660' Silver 8.58 9475 1628-05-00660 1/4" x 660' Silver 11.22 12385 1628-06-00660 9/32" x 660' Silver 16.50 18700 1628-07-00660 5/16" x 660' Silver 21.78 23600 1628-08-00660 3/8" x 660' Silver 26.40 26025 1628-09-00660 7/16" x 660' Silver 33.66 31530 1628-11-00660 1/2" x 660' Silver 44.88 43675 1628-12-00660

Ready to order? Have a question? Can't find what you're looking for? Call us at

1 888 285 4275

TEUFELBERGER STS ropes are constructed using a precisely controlled process which utilizes the ideal balance of temperature and tensioning thanks to uniform tension, uniform heating, and the minimized rotation of the rope during the entire heat-setting process.

Our process takes full advantage of the creep-ability of HMPE ropes’ shorter fibers which allows longer fibers to bear some of the load thereby creating a load that is much more balanced. On a microscopic level, the process straightens molecular chains for higher specific tensile properties.
